• The mechanical parts are all inground, and the ground is equipped with a wall-mounted electric control box.
• During non-working hours, the main engine and the supporting arm are completely hidden underground, and the ground is level and standard.
• PLC control, equipped with automatic one-key in-position preparation and one-key reset function, easy to operate.
• Equipped with double installation protection devices such as mechanical lock and hydraulic throttle plate. Synchronized steel beams ensure that the two lifting posts are raised and lowered synchronously.
• The upper cover of the main unit is provided with lights to facilitate the operation at the bottom of the vehicle.

• Equipped with rigid synchronous beam to ensure that the two lifting posts are raised and lowered synchronously.
• Configure mechanical lock.
• Equipped with hydraulic throttle plate.
• When the oil cylinder enters the oil (the lift rises), the throttle plate is opened to ensure fast oil filling with large flow and drive the equipment to rise;
• When the oil cylinder is draining oil (the lift is lowered), the throttle plate is closed, and only the small hole in the middle is kept to return oil, within the maximum lifting weight set by the equipment, to ensure that even in the extreme case of the oil pipe burst, the equipment will still keep slow Falling state, to prevent the occurrence of safety accidents caused by instant fall.

• Main power switch
• Configure emergency stop button
• PLC program control
• One-button in-position function
• One-button reset function

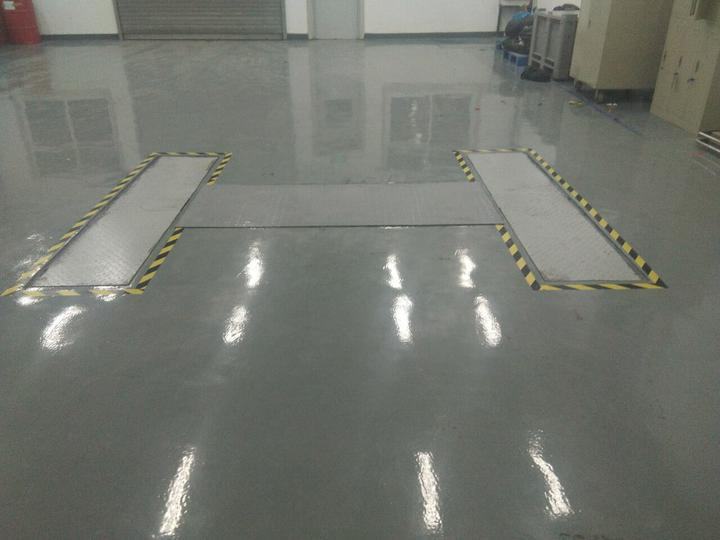

• During non-lifting operation time, the main engine and support arm are completely hidden underground, and the ground is clean and standardized.

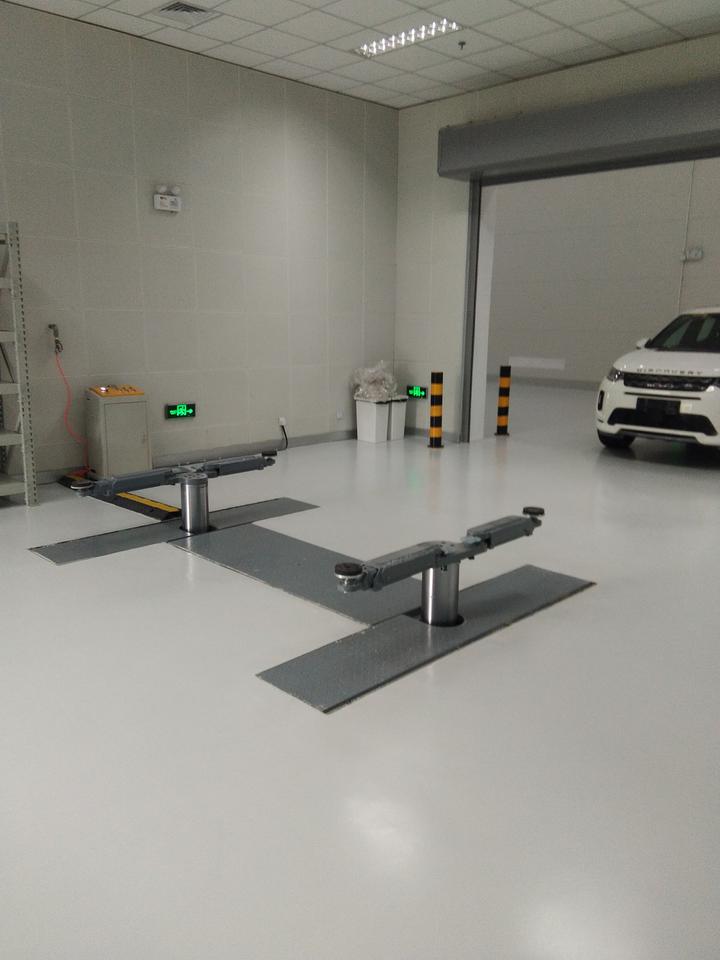

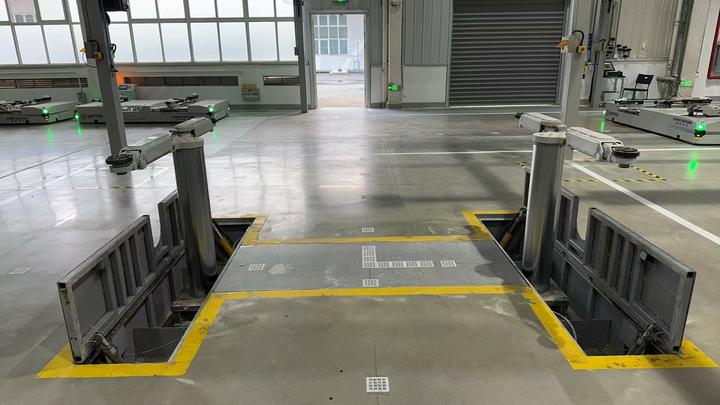

• During the lifting operation, the support arm is lifted out of the ground, the cover is closed, the ground has no grooves, and the working environment is safe and standardized.

The flip cover is a load-bearing structure combined with a painted patterned steel plate and a square tube frame, and the car can pass normally from above without deformation.

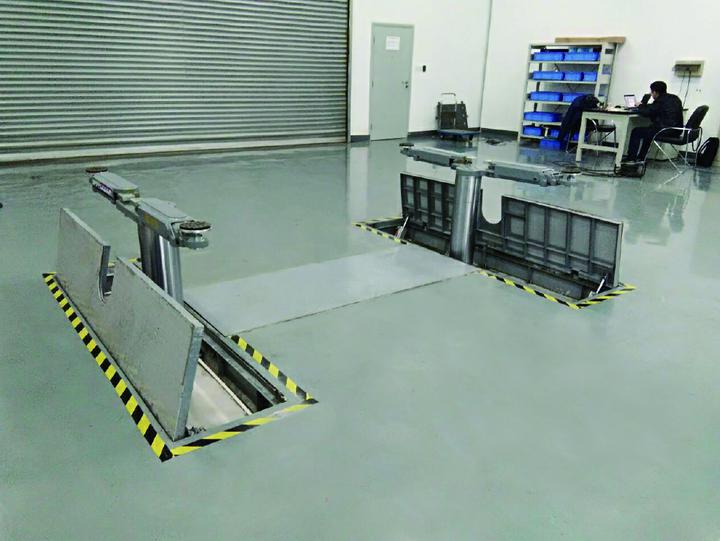

The cover plate turning mechanism is driven by electro-hydraulic, and the hydraulic synchronizing valve and spring assist to ensure that the cover plates on both sides are opened and closed synchronously.

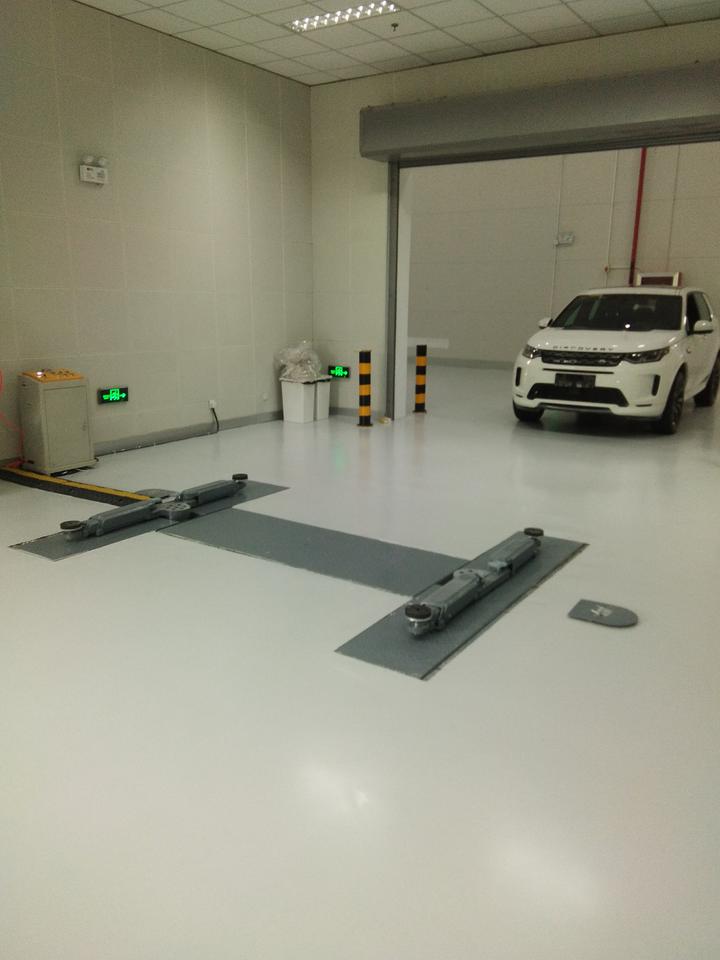

1. Press the "Prepare" button to automatically complete the following preparations: open the cover - lift the support arm - close the cover - lower the support arm - stop automatically when it touches the cover and wait for the vehicle to enter.
2. Drive the vehicle into the lift station, adjust the angle of the support arm, and confirm the lift point.

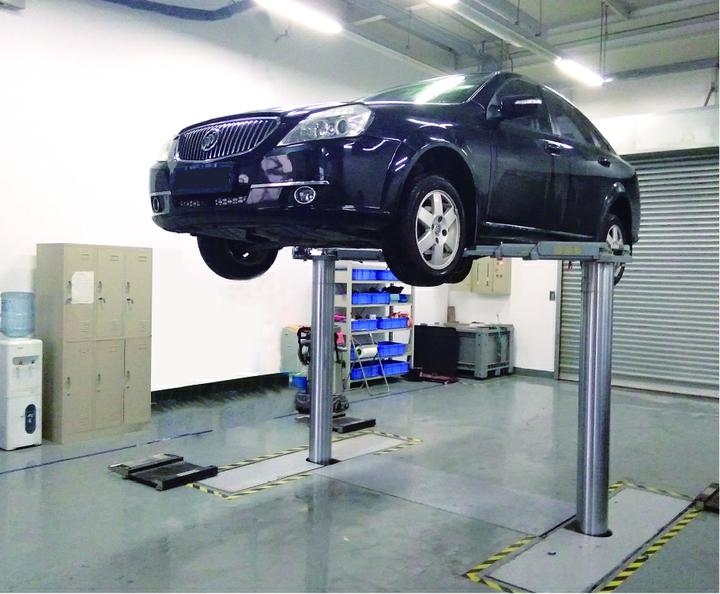

3. Press the "Up" button to lift the vehicle to the set height and start maintenance work.
4. After the maintenance is completed, press the "Down" button, the vehicle will land on the ground, the support arm will fall back to the cover, and confirm that the support arm is in the unlocked state.
5. Adjust the angle of the support arm to be parallel to the front and rear direction of the vehicle.
6. The vehicle moves away from the lift station.

1. Press the "reset" button to automatically complete the following reset work: the support arm rises to an appropriate height (no interference when the cover is turned over)---the cover is opened---the support arm is retracted to the ground---the cover is closed---control the system shuts down automatically.
