Automobile power performance and Chassis dynamomete

  • CTDCG-3 CTDCG-10 CTDCG-13
  • Automobile power performance and Chassis dynamomete

Description

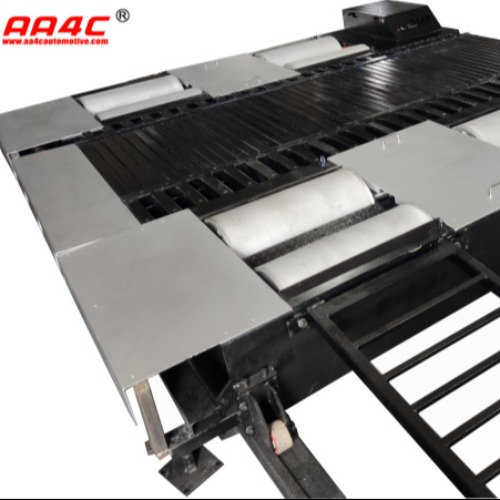

Vehicle chassis dynamometer

Technical parameters

Model

CTDCG-3

CTDCG-10

CTDCG-13

Maximum axle-load (kg)

3000

10000

13000

Maximum absorptivity (kw)

160

250

300

Maximum braking torque (N.m)

1600

2500

3000

Maximum testing speed (km/h)

130

130

130

Roller diameter x length (mm)

216×1000

318×1000

373×1000

Roller center distance (mm)

480

495

600

Roller width inside/outside(mm)

700/2700

700/2700

700/2700

Operation voltage *current

96V ×35A

96V ×35A

96V ×35A

Power (Hz)

220V ±10%  50HZ

220V ±10%  50HZ

220V ±10%  50HZ

Product description:

Vehicle chassis dynamometer is mainly used for testing vehicle dynamics, emissions and fuel consumption, (used in conjunction with fuel consumption meter, fuel consumption meter etc.) , it can fulfill car economy experiment, dynamic experiment and reliability experiment. It can also test chassis output power, torque, speed, distance, acceleration time, sliding distance and other data. We have two major types: power performance dynamometer and emission performance dynamometer.

Main properties and features:

1. Through high precision dynamic balancing, surface coating roller have high joint strength, abrasion resistance, adhesion coefficient is 0.92 or higher

2. Equipped with adjustable gear wheel, in order to guarantee the front drive vehicles test do not produce lateral slip; safe and reliable

3. With fuel consumption meter, it can measure the condition of fuel consumption

4. The body is made of high quality flat MS Windows machine, ability is all ready, friendly interfaces, strong networking and it is convenient

5. Retrieve testing data, automatically print the results
