2 Wheeled Motorcycle Chassis Dynamometer motorcycle dyno machine with 320km/h Speed and 160kW Eddy Current Power

ITEM NO.: CTMTDCG-3W
DESC: 2 Wheeled Motorcycle Chassis Dynamometer motorcycle dyno machine with 320km/h Speed and 160kW Eddy Current Power
Packed Size:
Color:
Voltage:
Quantity:

Description

2 Wheeled Motorcycle Chassis Dynamometer motorcycle dyno machine with 320km/h Speed and 160kW Eddy Current Power

Component	Specification
Roller Assembly	Diameter: 525 mm, Width: 400 mm, Max speed: 320 km/h
Rated Torque	1000 Nm
Rated Power	160 kW
Maximum Absorption Power	160 kW
Power Supply	380V AC, 50Hz, 80kVA (Power cabinet) 220V AC, 50Hz, 16A (Control cabinet)
Sensors	Speed sensor: 600 P/R, Torque sensor: 500 N*m
Control & Measurement	Time accuracy: 0.01 s, Mileage accuracy: 0.01 m, Coast-down step: 2 km/h

The AA4C Motorcycle Dynamometer (Eddy Current Type) is a state-of-the-art power testing equipment developed for comprehensive motorcycle performance evaluation. This chassis dynamometer system is widely utilized for performance testing, durability assessment, and emission analysis of motorcycles.

Key Features

Utilizing our proprietary inertia control algorithm, the system ensures stable and reliable operation. It supports fully automatic setting for simulated road resistance and employs the coast-down method for automatic friction loss correction. Resistance can be configured via look-up table method, Euro III standard method, and EPA standard method.

Test Standards

(Subject to actual configuration)

QC/T60-1993 Bench test methods for complete motorcycle performance

GB 14622-2007 Limits and measurement methods for exhaust pollutants from motorcycles

GB 18176-2007 Limits and measurement methods for exhaust pollutants from mopeds

European Standard 1997L0024-EN-2003

WMTC World Motorcycle Test Cycle

US EPA 40 CFR Parts 86.529-78 Road load force and inertia weight determination

Test Methods

Simulated road load resistance method

Direct input of simulated road load resistance coefficient method

Look-up table method

Euro III standard method

EPA standard method

Test Items

(Subject to actual configuration)

Speedometer calibration test

Odometer calibration test

Take-off acceleration performance test

Overtaking acceleration performance test

Steep hill climbing performance test

Speed test for long slope climbing

Maximum speed performance test

Minimum stable speed performance test

Coast-down performance test

Motorcycle driving wheel output power test

Engine output power performance test

Engine constant speed (automatic) test

Main Technical Parameters

Component Specification

Roller Assembly Diameter: 525 mm, Width: 400 mm, Max speed: 320 km/h

Rated Torque 1000 Nm

Rated Power 160 kW

Maximum Absorption Power 160 kW

Power Supply 380V AC, 50Hz, 80kVA (Power cabinet)
220V AC, 50Hz, 16A (Control cabinet)

Sensors Speed sensor: 600 P/R, Torque sensor: 500 N*m

Control & Measurement Time accuracy: 0.01 s, Mileage accuracy: 0.01 m, Coast-down step: 2 km/h

Equipment Composition

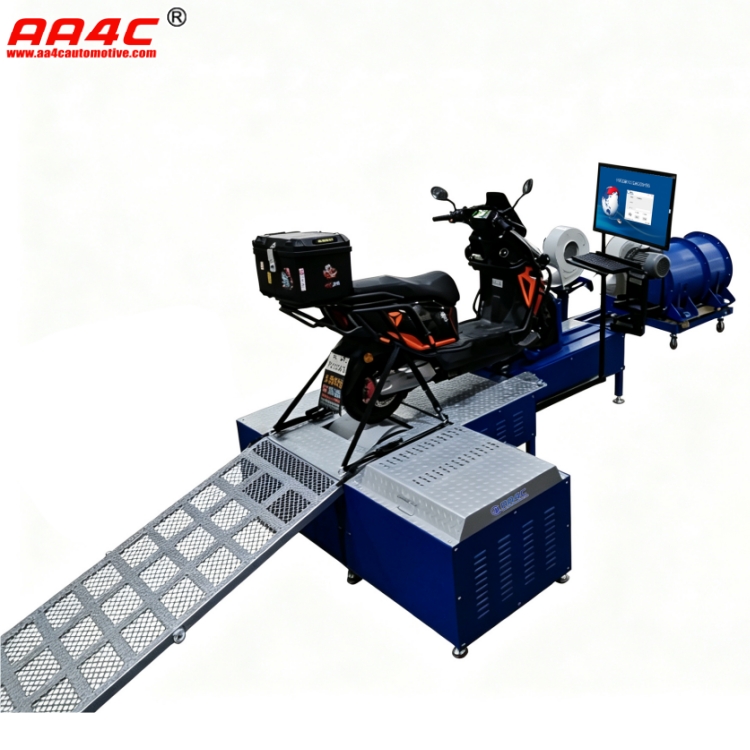

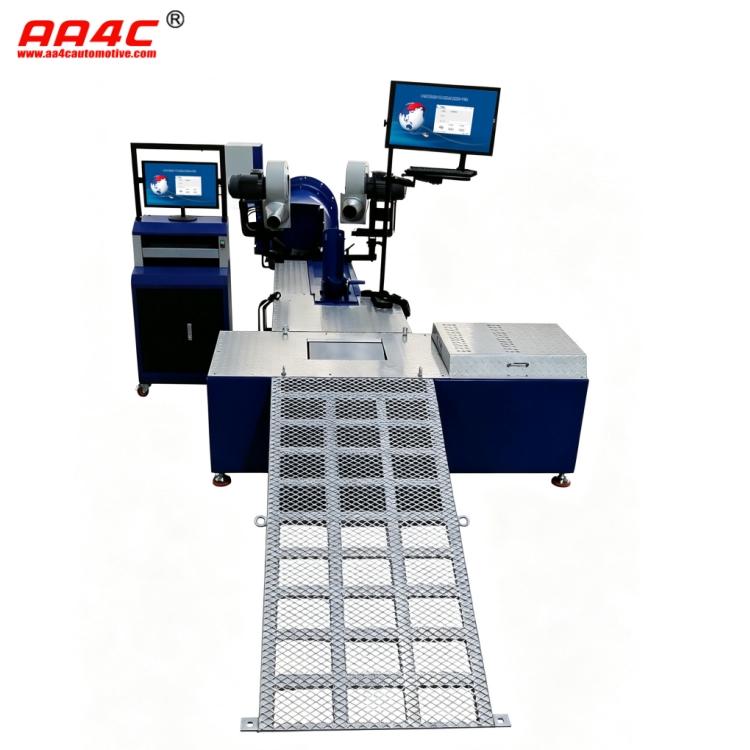

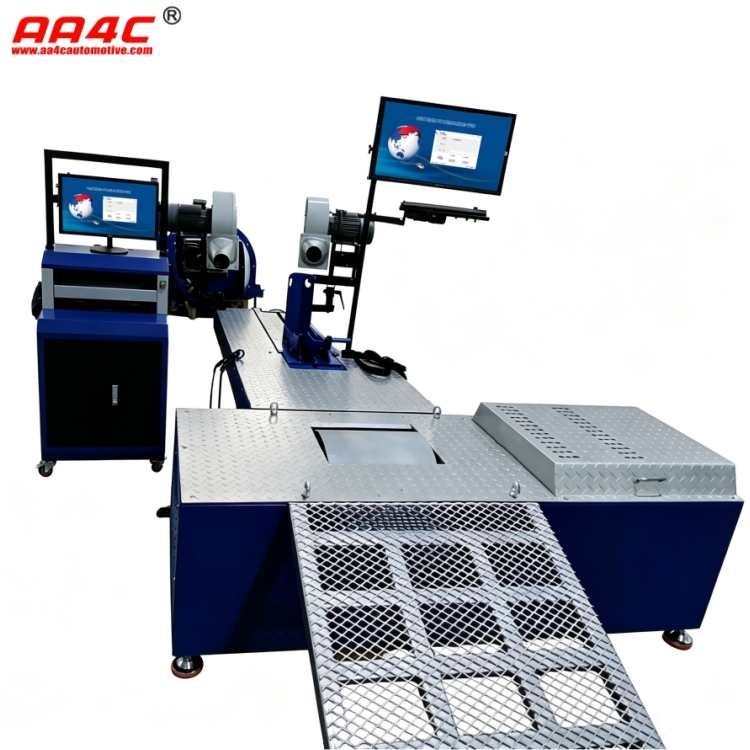

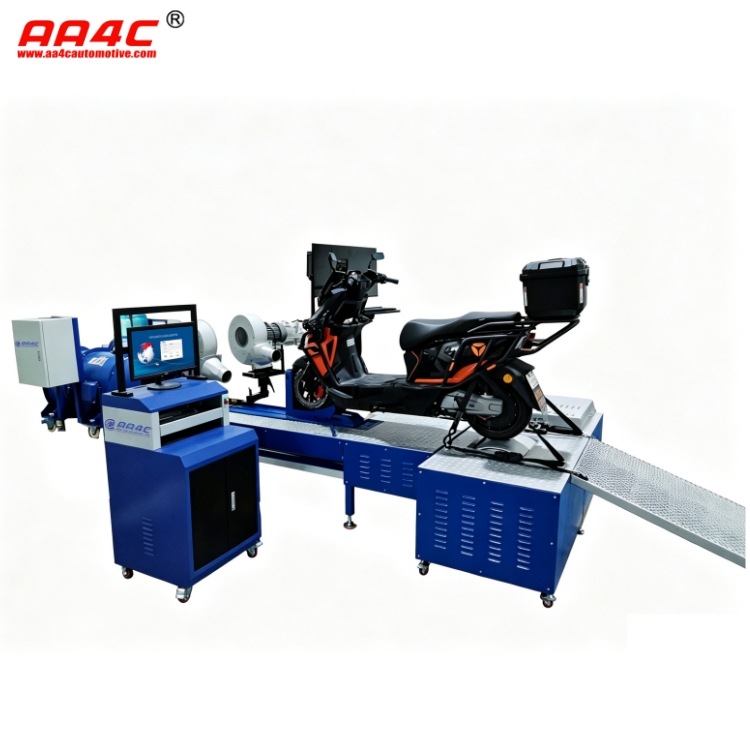

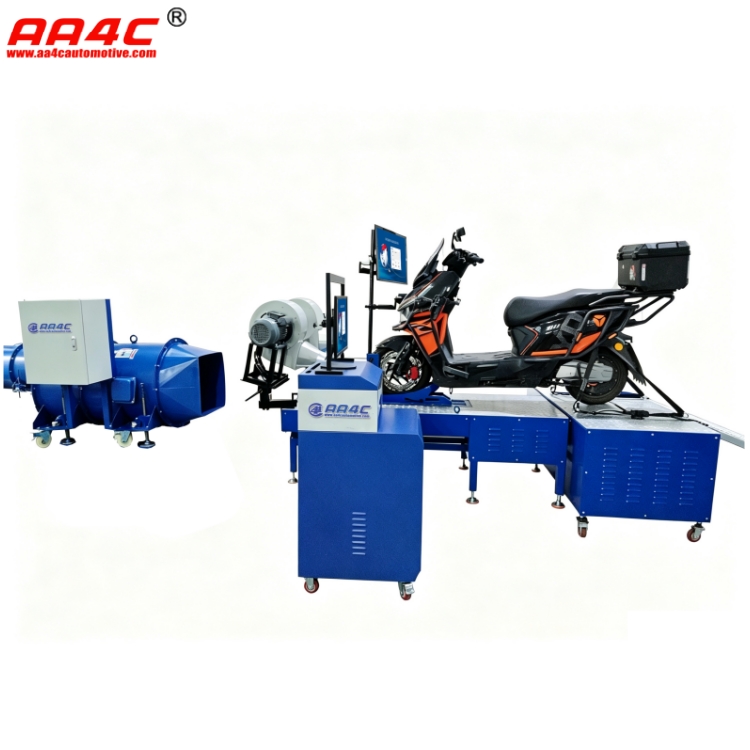

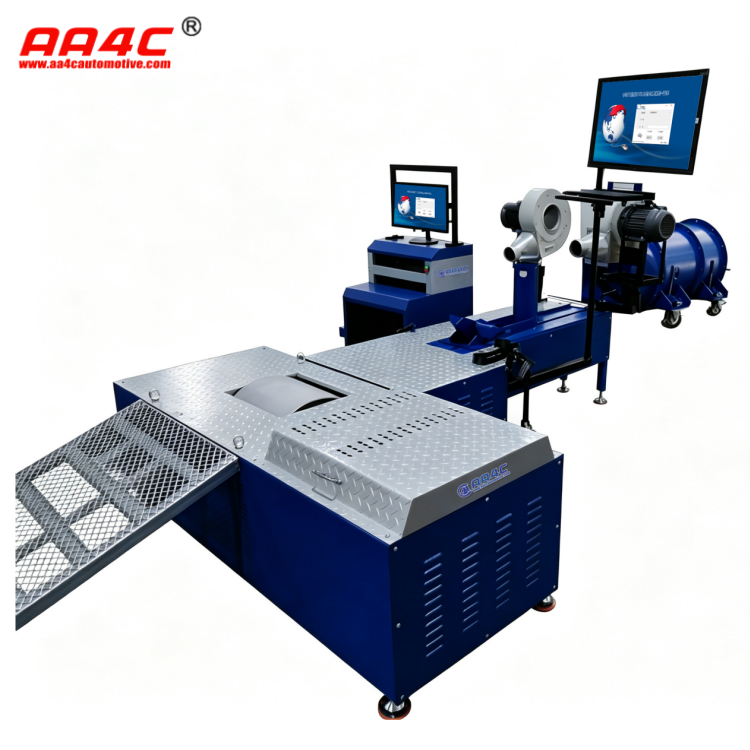

Complete system includes chassis dynamometer, measurement & control unit, dynamometer control cabinet, blower, and auxiliary devices.
