Puzzle Parking PSH3

  • PSH3

Description

Puzzle Parking (Vertical-Horizontal Moving PSH) 3 levels Parking System

Work Principle
This system is designed with 3 layers and multi-columns layout.  Each layer is designed with a spare space as an exchanging
space.  All spaces can be auto-lifting freely except the spaces in the first layer and all the spaces can be auto-transverse
moving except the spaces in the top layer. When a space needs to park or release a car, all spaces under the space will make
a one space transverse moving to the empty space and forms a lifting channel under this space. In this case, the space will
go up and down freely. When it reaches the ground, the car will go out and in freely.
Characteristics
◆Low area coverage and high usage rate of space.
◆The layers and columns will be added to raise the number of cars according to the customer's requirements.

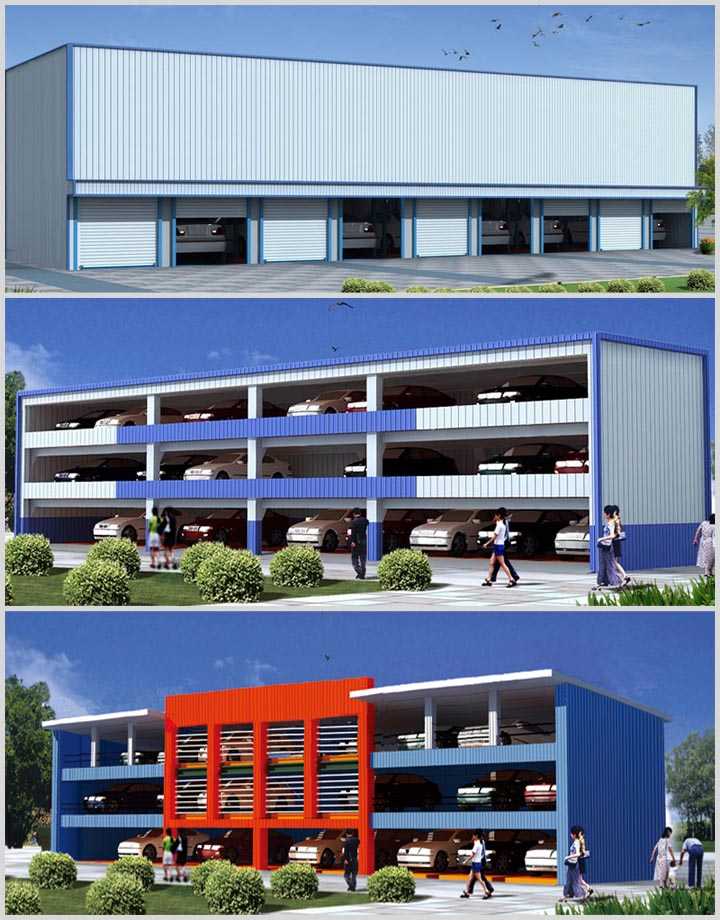

◆It may be designed with full-closed style to adjust the surrounding environment.
◆It operates steadily without noise and with fast operating speed and short parking and releasing time.
◆Multi-channels safety protection and series of safety protection devices for anti-dropping, anti-crashing and anti-overloading
Main Structure
◆Steel structure
◆Car Pallet
◆Lifting system
◆Sliding system
◆Hydraulic system
◆PLC control system
◆Safe-guard system

Technical Parameters

Mode of drive

Hydraulic

Motor

Size of car (L×W×H)

5000mm×1850mm×1550mm

Weight of car

2000kg

Lifting motor power

5.5-11kw

2.2kw

Lifting speed

12-38m/min

5.6m/min

Sliding motor power

0.2kw

Sliding speed

8m/min

Electricity

AC380V,50Hz, 3 phases 5 wires system

Safeguard devices

Hydraulic whole protection and anti-fall frame

Anti-fall frame (our patent)

Warning devices

Sound, light, electricity

Malfunction indication

Fault diagnosis by computer, liquid crystal display

Frame composition

Columns and beams are made of H type steel, Channel steel, angle steel and square pipes;

Parts appearance treatment

Galvanized treatment and high-grade anti-corrosion paint

Modes of operation

LCD/ IC card/Manual

Controller

PLC

Way of parking in and out

Forwarding, reversing into the space
