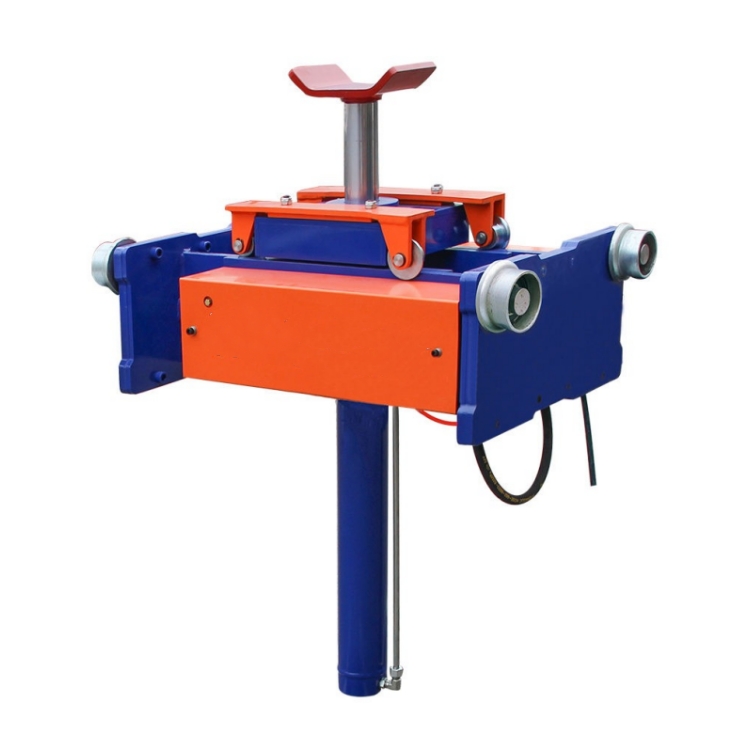

AA4C inground heavy duty pneumatic truck lift 20T bus lift automotive lift auto hoist AA-20PPT

Model No.:AA-20PPT

type/类型：pneumatic hydraulic lift/气动举升机

lifting capacity/举升能力：20 tons/20吨

lifting stroke/举升行程：800 mm

width of the device/设备宽度：650 mm

length of the device/设备长度：680~960/920~1220/1180~1480 mm

height of the device/设备高度：1022~1822 mm

recommended pit depth/地沟深度：>=840mm

recommended pit width/地沟宽度：680~960/920~1220/1180~1480 mm

pneumatic pressure/输入气压：0.75~1.2 mPav

hydraulic pressure/工作液压：65Mpa
